Double Ended Ring Spanners Straight

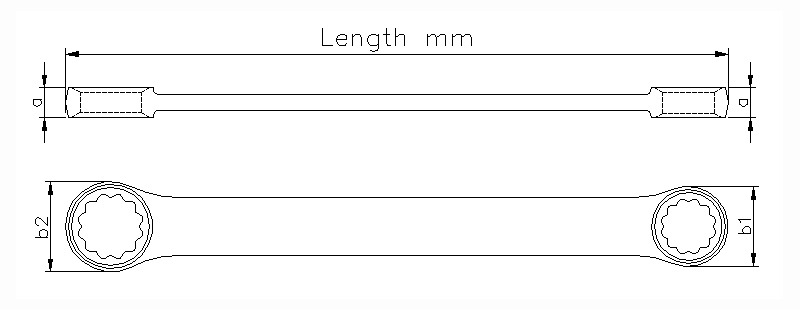

Double Ended Ring Spanner Straight


Size (mm)

Length in (mm)

b1

b2

a

Weight (gms)

6x7

97

8.8

10.3

4.4

18

8x9

111

11.6

13

5.3

22

8x10

117

11.6

14.5

5.4

25

9x11

127

13.8

16.3

6

30

10x11

127

14.5

15.5

6.2

35

10x13

142

14.5

19

7

40

11x13

142

16.3

19.8

7

45

12x13

142

17.5

19

7

48

12x14

155

17.5

20

7.2

55

13x15

155

19

21.2

7.2

65

13x17

166

19

23.6

8

75

14x15

155

20

21.2

7

65



Size (mm)

Length (mm)

b1

b2

a1

Weight (gms)

16x17

166

22.6

23.6

8

80

17x19

185

23.6

26

8.8

100

18x19

185

25

26.6

8.8

105

19x22

191

26.8

31.2

9.7

120

20x22

201

27.5

30.5

10.6

135

21x23

214

28.5

31.2

10.8

150

22x24

214

30.5

32.6

10.8

165

24x27

263

33.2

36.6

11.4

225

25x28

263

34.2

58.6

12.5

270

27x29

280

38

42.5

13.3

285

30x32

283

41.5

44

13.3

325
