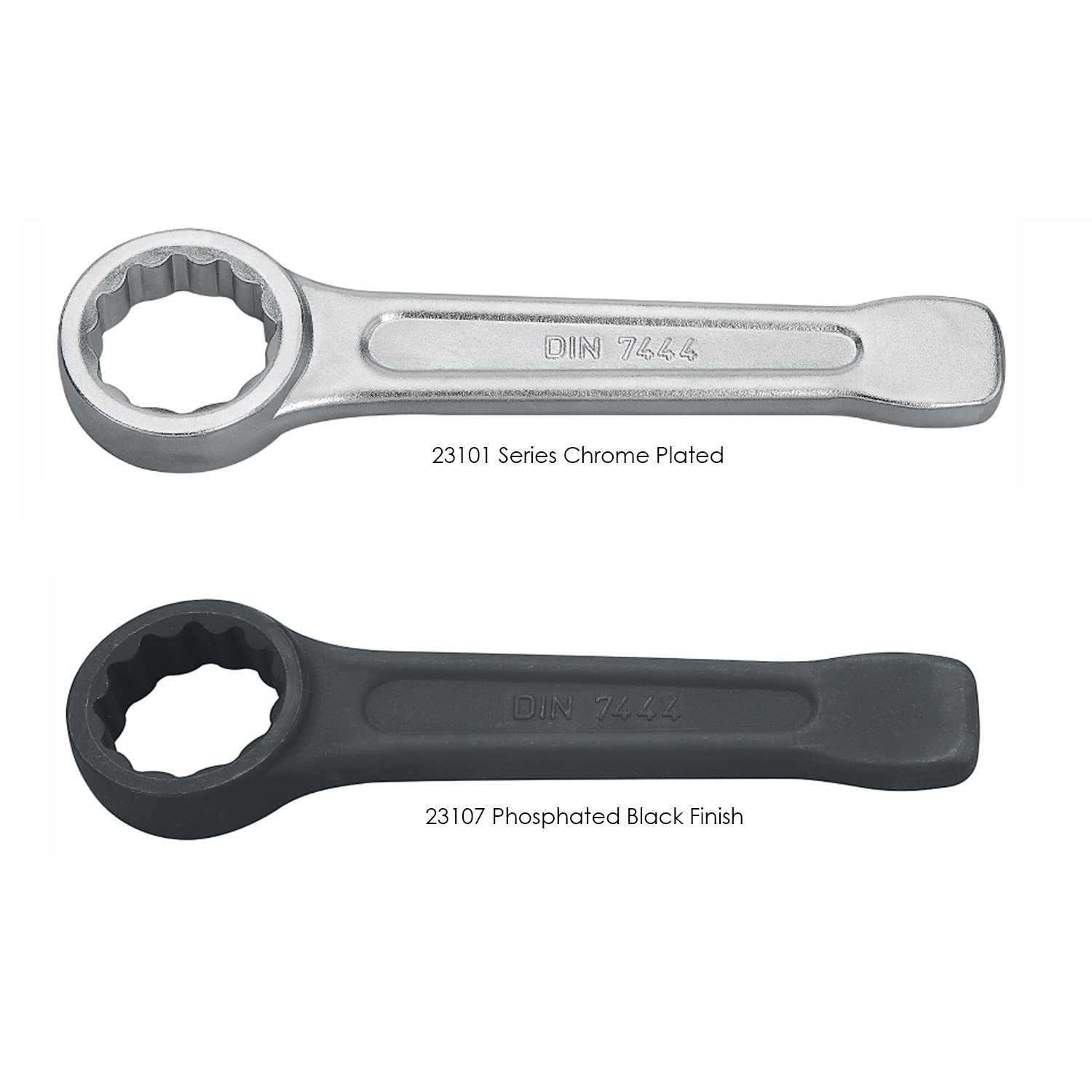

Ring Slugging Spanner

Ring Slugging Spanner

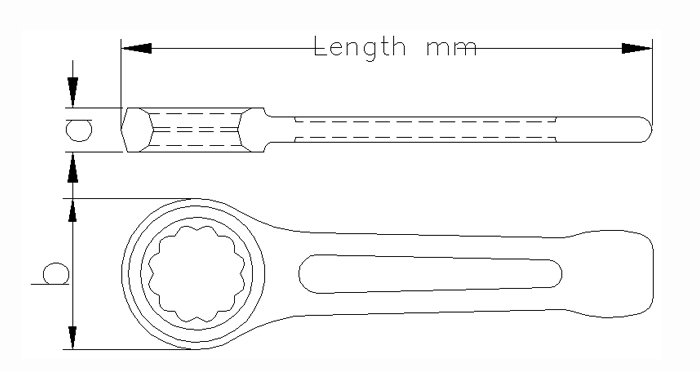

Size (mm)

Length (mm)

b

a

Weight in Gms.

22 164 39 14.5 190

24

164

40.5

14.5

200

27

180

51

15.8

255

30

190

51

15.8

375

32

190

54

16.8

380

34

195

57

16.8

390

36

204

63

18.8

500

41

225

71.5

18.8

670

46

238

76.5

20.3

900

50

250

84.5

23.3

1115

55

265

90

24

1250

60

274

100

26

1480

65

290

105

28

1920

70

320

110

35.5

2340

75 326 121 33 2800
80 350 164.5 33 3850
85 350 125 40 3950
90 390 147 40 5500
95 390 147 43.5 5450
100 420 150 45.5 6500
105 420 166 47.5 6800
110 450 166 47.5 8200
115 450 166 47.5 8300
