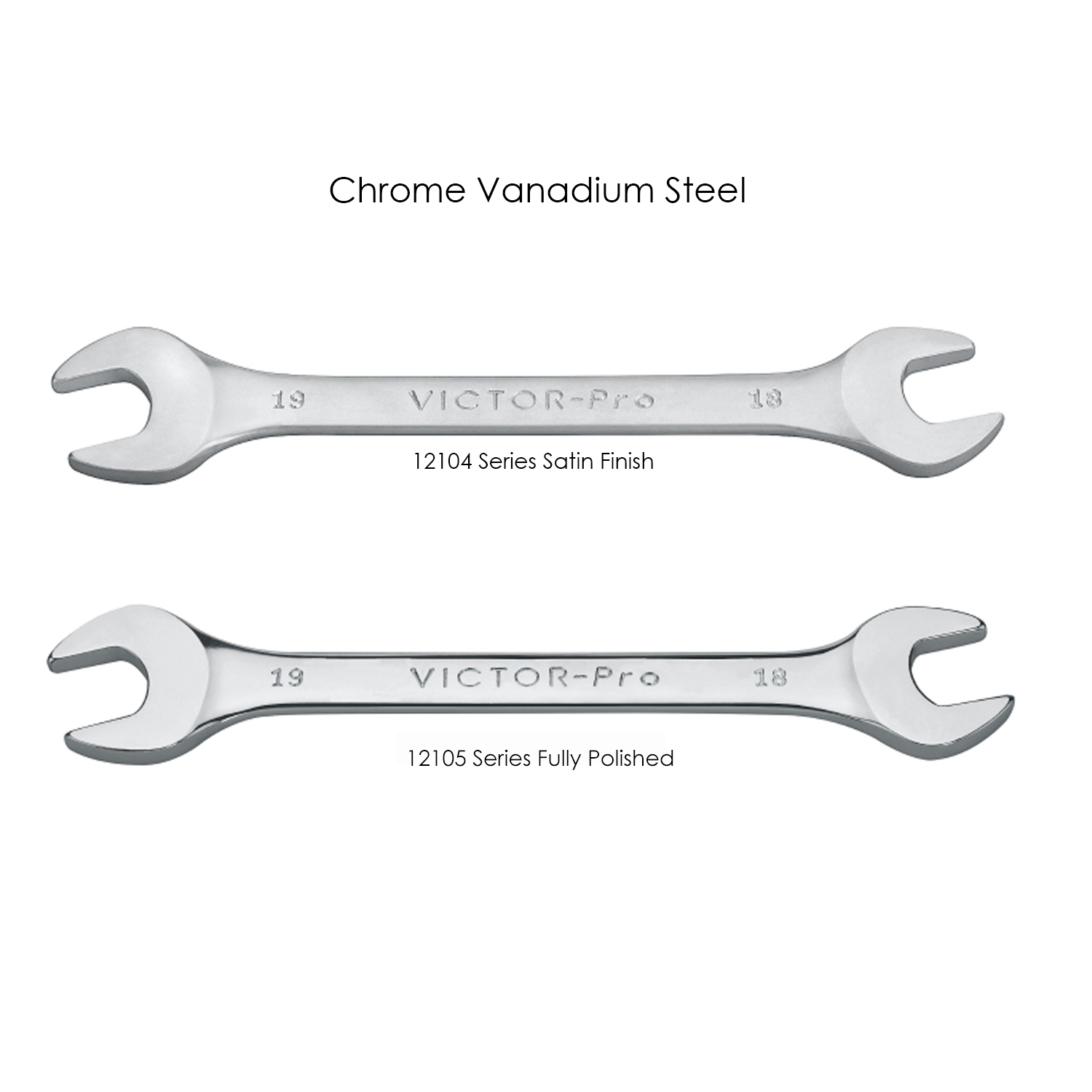

DOUBLE ENDED OPEN JAW SPANNER

DIN 3110 - ISO 3318 - ISO 1085
Chrome Vanadium Steel
Finish: Satin Finish / Fully Polish

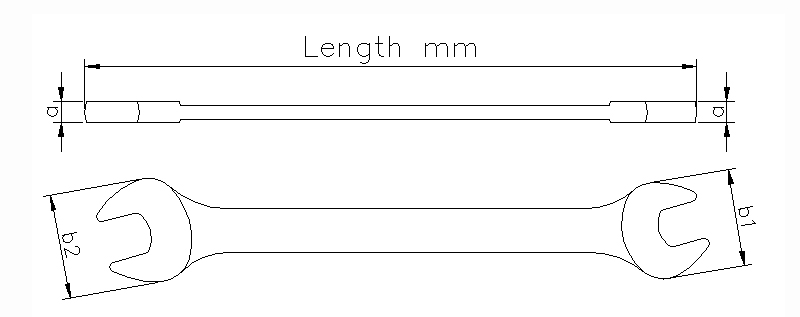

SIZE (MM) LENGTH (MM) b1 b2 a WEIGHT (GMS)
6x7 123 16.5 17.5 3.3 18
7x8 132 17.5 19 3.5 24
7x9 142 17.5 21 3.5 34
8x9 142 19 21 3.5 35
8x10 142 19 23.5 4 37
9x10 158 21 23.5 4.4 48
9x11 158 21 26 4.4 50
10x11 158 23.5 26 4.4 52
10x12 158 23.5 28 4.4 55
10x13 171 23.5 29 4.8 66
11x13 171 26 29 4.8 68
11x14 171 26 30.5 4.8 69
12x13 171 28 29 4.8 70
12x14 175 27.5 30.5 4.8 74
13x14 178 29 30.5 5.2 76
13x15 187 29 32 5.2 80
13x16 190 30 34.5 5.7 90
13x17 201 29 37.5 5.7 115
14x15 187 30.5 33 5.4 92
14x17 201 30.5 37.5 5.7 120
16x17 201 34.5 37.5 6 132
16x18 201 34.5 38.5 6 134
17x19 220 37.5 41.5 6.2 145
17x22 238 37.5 46 7 188
18x19 220 38.5 41.5 6.7 155
SIZE (MM) LENGTH (MM) b1 b2 a WEIGHT (GMS)
18x21 237 38.5 43 7 200
19x21 237 41.5 43 7 210
19x22 237 41.5 46 7 215
19x24 241 41.5 49.5 8 234
20x22 238 43.5 46.5 7.2 220
21x23 248 43 49.5 7.2 226
21x24 248 43 46.5 8 250
22x24 248 46 51.5 8 253
22x27 265 46 56 8 265
23x26 265* 47 52.5 8 310
24x26 265* 51.5 52.5 8.2 340
24x27 265 51.5 58.5 8.2 345
24x30 279 51.5 61.5 8.7 425
25x28 279 53.5 59.5 8.2 360
27x30 300* 56 61.5 8.7 454
27x32 300* 56 66 8.7 460
30x32 300 51.5 66 9 540
30x34 300 61.5 68 9.2 480
30x36 310 60 71 9.2 506
32x36 310 66 71 9.2 596
34x36 330 69 71 11 790
34x41 355 71 78 11 870
41x46 419 78 85.5 13.6 1300
46x50 474 85.5 93.5 14.4 1680
Code Sets 6x7 8x9 10x11 12x13 14x15 16x17 18x19 20x22 21x23 24x27 24x26 25x28 27x32 30x32
0001 6 Pcs Set X X X X X X
0002 8 Pcs Set X X X X X X X X
0003 12 Pcs Set X X X X X X X X X X X X
0004 12 Pcs Set X X X X X X X X X X X X
