BI HEXAGONAL RING SPANNER

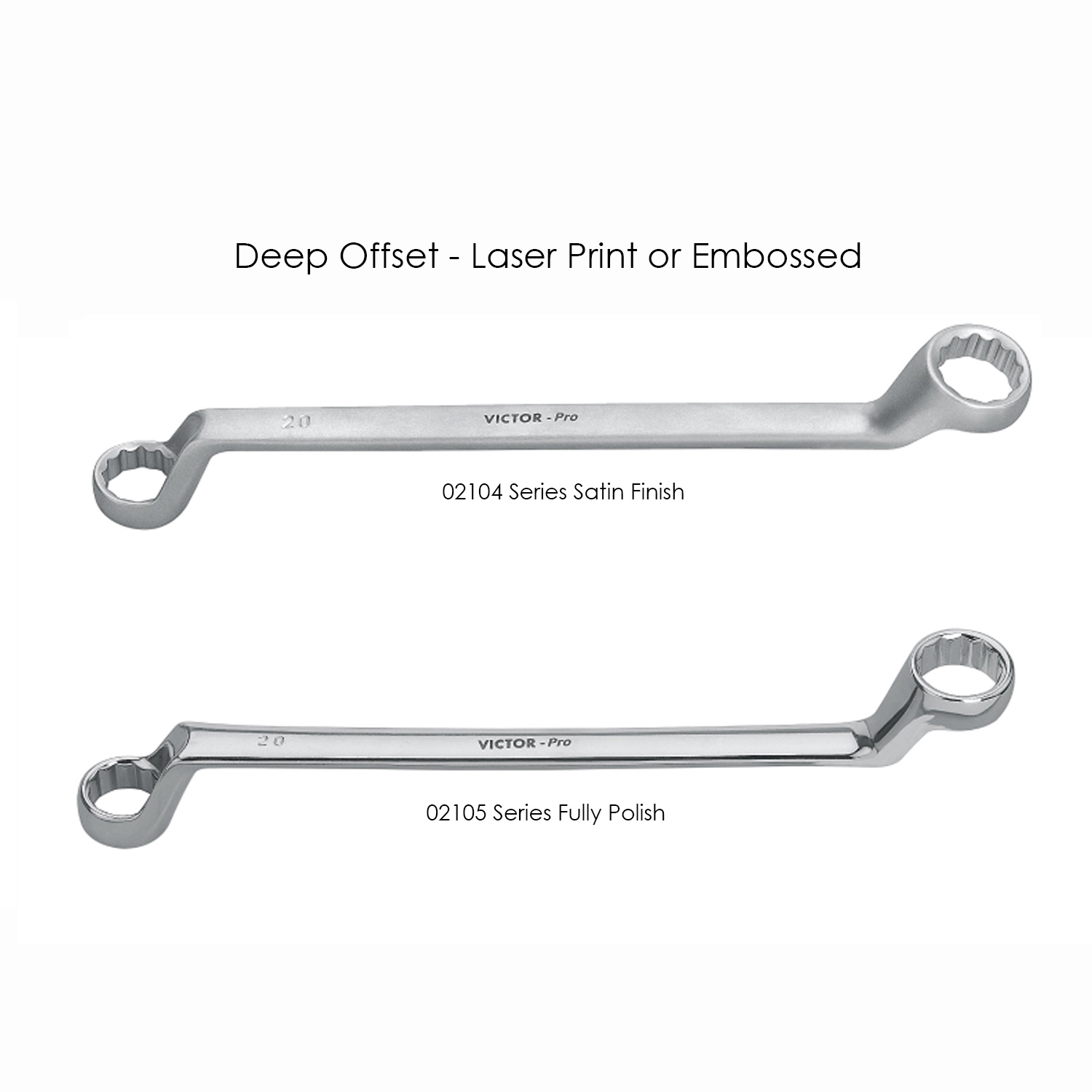

Deep Offset - Laser Print or Embossed
DIN 838 - ISO 3318 - ISO 1085
Chrome Vanadium Steel

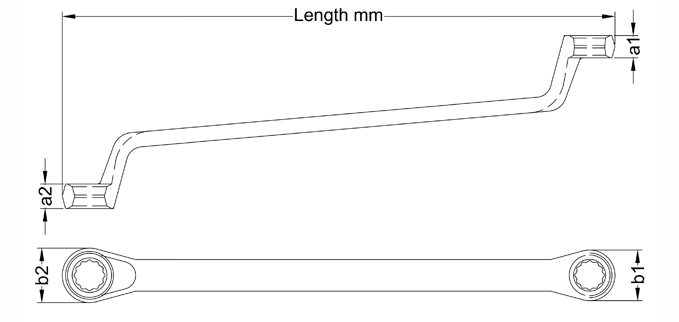

SIZE (MM)	LENGTH (MM)	a1	a2	b1	b2	WEIGHT (GMS)
6x7	182	5.4	6.2	10	11	50
8x9	192	6.2	7.2	12.5	14	70
8x10	192	6.2	8.2	12.5	15.5	67
9x11	203	7.2	9	14	17	75
10x11	203	8.2	9	15.5	17	100
10x13	214	8.2	10	15.5	20	115
12x13	214	9	10	18.5	20	130
12x14	214	9	10	18.5	21.5	120
13x14	227	9	10	20	21.5	130
13x15	227	10	10.8	20	22.5	130
13x17	244	10	11.7	20	25.5	164
14x15	227	10	10.8	21.5	25.5	150
14x17	250	10	11.7	21.5	27.5	163
16x17	250	11	11.7	24.5	28.5	190
16x18	252	11	12	24.5	27.5	178
17x19	263	11.7	12.6	25.5	28.5	223
18x19	263	12	12.6	27.5	28.5	265
18x21	282	12	13	27.5	30.5	230

SIZE (MM)	a1	a2	b1	b2	LENGTH (MM)	WEIGHT (GMS)
19x22	12.6	13.6	28	32.5	286	285
19x24	12.6	13.8	28	35.5	314	347
20x22	12.7	13.6	30	32.5	286	330
21x23	13	13.8	30.5	34.5	314	380
22x24	13.4	13.8	32.5	35.5	314	388
22x27	13.4	14.6	32.5	39.5	314	400
24x26	13.8	14.6	32.5	38.5	324	420
24x27	13.8	14.6	35.5	39.5	324	440
24x30	13.8	15.6	35.5	43.5	344	490
25x28	14	14.8	37.5	41.5	344	496
27x30	14	14.6	39.5	43.5	347	548
30x32	14.6	17.5	43.5	46.5	363	660
30x36	14.6	18	43.5	52.5	400	850
32x36	17.5	18	46.5	52.5	404	950
34x36	17	18	49.5	52.5	440	1020
36x41	18	19.8	52.5	60.5	444	1274
41x46	20	21.5	60.5	68.5	500	1425
46x50	21.5	22.5	68	74	540	2050

Code	Sets	6	7	8	9	10	11	12	13	14	15	16	17	18	19	20	21	22	23	24	25	26	27	28	29	30	32
002	6 Pcs Set	X	X	X	X	X	X	X	X	X	X	X									X
0003	8 Pcs Set	X	X	X	X	X	X	X	X	X	X	X	X	X			X				X
0003	12 Pcs Set	X	X	X	X	X	X	X	X	X	X	X	X	X	X	X	X	X	X	X	X
0004	12 Pcs Set A	X	X	X	X	X	X	X	X	X	X	X	X	X	X	X	X	X	X	X	X	X	X	X	X	X
