DOUBLE ENDED OPEN JAW SPANNER

DIN 3110 - ISO 3318 - ISO 1085
Chrome Vanadium Steel

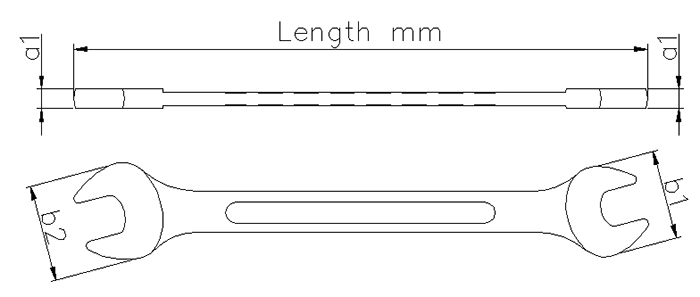

SIZE (MM) LENGTH (MM) b1 b2 a1 WEIGHT (GMS)
5.5x7 122 16.8 18.8 3 18
6x7 122 16.8 18.8 3 18
6x8 122 16.8 20.2 3 20
7x8 139 18.8 20.2 3.4 26
8x9 139 20.2 22.5 3.4 28
8x10 144 20.2 24.5 3.8 40
10x11 157 24.5 26.5 4.2 52
10x12 157 24.5 28.5 4.2 54
10x13 167 24.5 30.5 4.6 62
11x13 167 26.5 30.5 4.6 65
12x13 172 28.5 30.5 4.6 68
12x14 172 28.5 32 4.6 73
13x14 187 30.5 32 5 85
13x15 187 30.5 34 5 90
13x16 187 30.5 36 5 95
13x17 204 30.5 38 5.3 109
14x15 188 32 34 5 100
14x17 204 32 38 5.3 105
16x17 204 36 38 5.4 110
16x18 204 36 39 5.4 115
17x19 222 38 40.5 6.2 140
18x19 222 39 40.5 6.2 150
SIZE (MM) LENGTH (MM) b1 b2 a1 WEIGHT (GMS)
18x21 236 39 45 6.8 175
19x22 236 40.5 46.5 6.8 180
19x24 246 40.5 51 6.8 205
20x22 246 42.5 46.5 6.8 185
21x23 246 45 49 6.8 210
22x24 246 46.5 51 7 220
24x26 262 51 55 7.4 282
24x27 262 51 57 7.4 285
25x28 275 53 59 7.5 316
27x30 298 57 63 8.3 425
27x32 298 57 67 8.6 440
30x32 298 63 67 8.6 450
30x36 310 63 72 9.5 520
32x36 310 67 72 9.5 530
34x36 336 68 72 9.8 715
36x41 354 72 80 10.4 520
41x46 420 80 87 10.8 1260
46x50 474 87 94 11.6 1580
Code Sets 6x7 8x9 10x11 12x13 14x15 16x17 18x19 20x22 21x23 24x27 24x26 25x28 27x32 30x32
0001 6 Pcs Set X X X X X X
0002 8 Pcs Set X X X X X X X X
0003 12 Pcs Set X X X X X X X X X X X X
0004 12 Pcs Set X X X X X X X X X X X X
