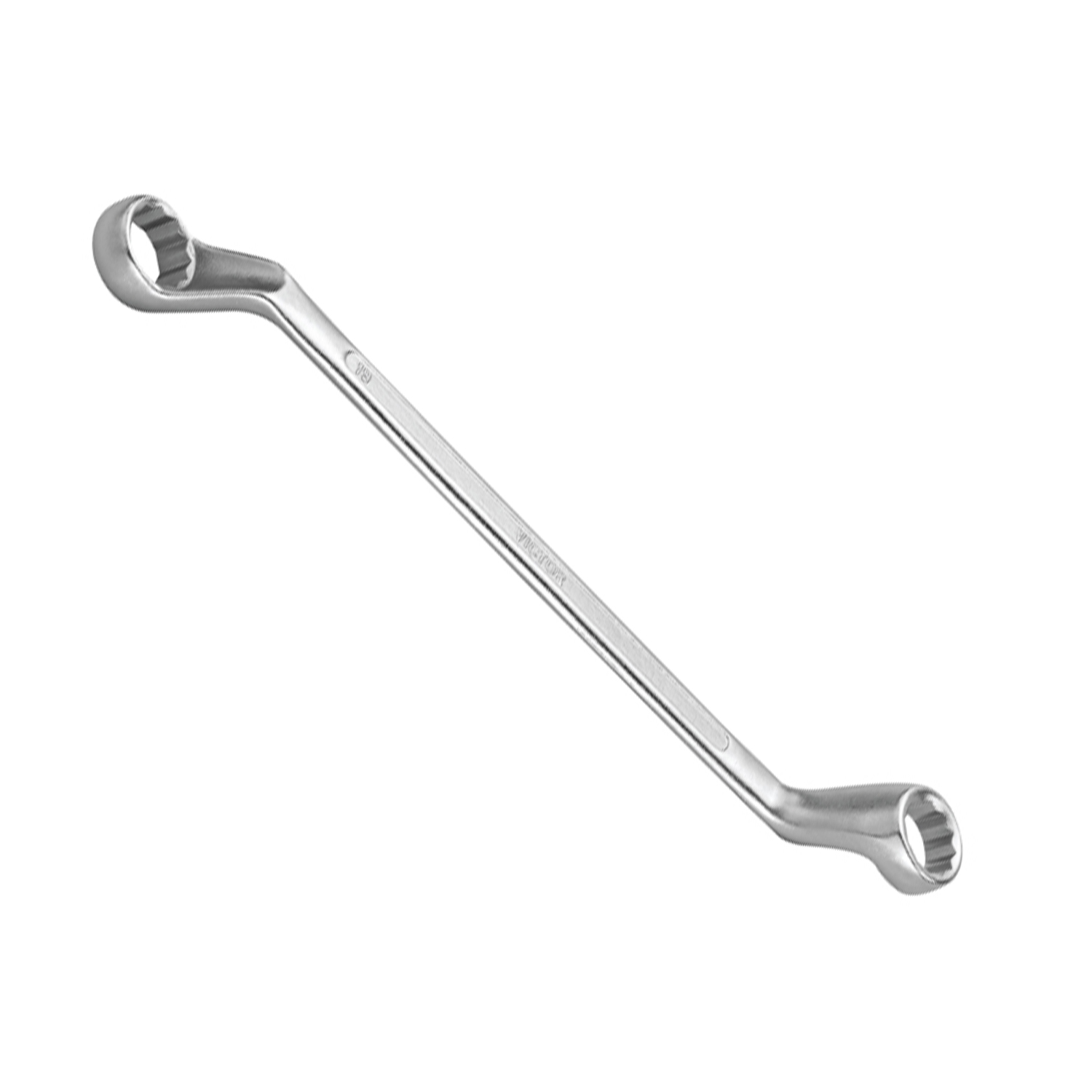

SATIN FINISH BIHEXAGONAL RING SPANNER

Deep Offset - Laser Printed or Embossed
DIN 838 - ISO 3318 - ISO 1085
Chrome Vanadium Steel
Finish: Satin Finish / Fully Polish

SIZE (MM) LENGTH (MM) b1 b2 a1 a2 WEIGHT (GMS)
6x7 182 10 11 5.4 6.2 60
7x8 182 11 12.5 5.8 6.6 55
8x9 192 12.5 14 6.2 7.2 70
8x10 192 12.5 15.5 6.2 8.2 67
9x11 203 14 17 7.2 9 75
10x11 203 15.5 17 8.2 9 100
10x12 203 15.5 18.5 8.2 9 105
10x13 214 15.5 20 8.2 10 120
12X13 216 18.5 20 9 10 130
12X14 216 18.5 21.5 9 10 135
13X14 227 20 21.5 9 10 130
13X15 227 20 22.5 10 10.8 130
13X17 244 20 25.5 10 11.7 164
14X15 227 21.5 22.5 10 10.8 150
14X17 246 21.5 25.5 10 11.7 163
16X17 250 24.5 25.5 11 11.7 190
16X18 254 24.5 27.5 11 12 184
17X19 263 25.5 28.5 11.7 12.6 223
18X19 263 27.5 28.5 12 12.6 265
18X21 284 27.5 30.5 12 13 230
19X22 289 28 32.5 12.6 13.6 285
19X24 314 28 35.5 12.6 13.8 347
20X22 289 30 32.5 12.7 13.6 330
21X23 314 30.5 34.5 13 13.8 380
22X24 314 32.5 35.5 13.4 13.8 388
22X27 324 32.5 39.5 13.4 14.6 400
24X26 324 35.5 38.5 13.8 14.6 420
24X27 324 35.5 39.5 13.8 14.6 440
SIZE (MM) LENGTH (MM) b1 b2 a1 a2 WEIGHT (GMS)
24X30 344 35.5 43.5 13.8 15.6 490
25X28 344 37.5 41.5 14 14.8 496
27X30 347 39.5 43.5 14 14.6 548
27X32 359 39.5 46.5 14 16 570
30X32 363 43.5 46.5 14.6 17.5 660
30X34 396 42 48.5 15.4 17.5 800
30X36 400 43.5 52.5 14.6 18 850
32X36 404 46.5 52.5 17.5 18 950
34X36 440 49.5 52.5 17 18 1020
36X41 448 52.5 60.5 18 19.8 1274
41X46 500 60.5 68.5 20 21.5 1425
46X50 540 68 74 21.5 22.5 2050
